Inno Instrument

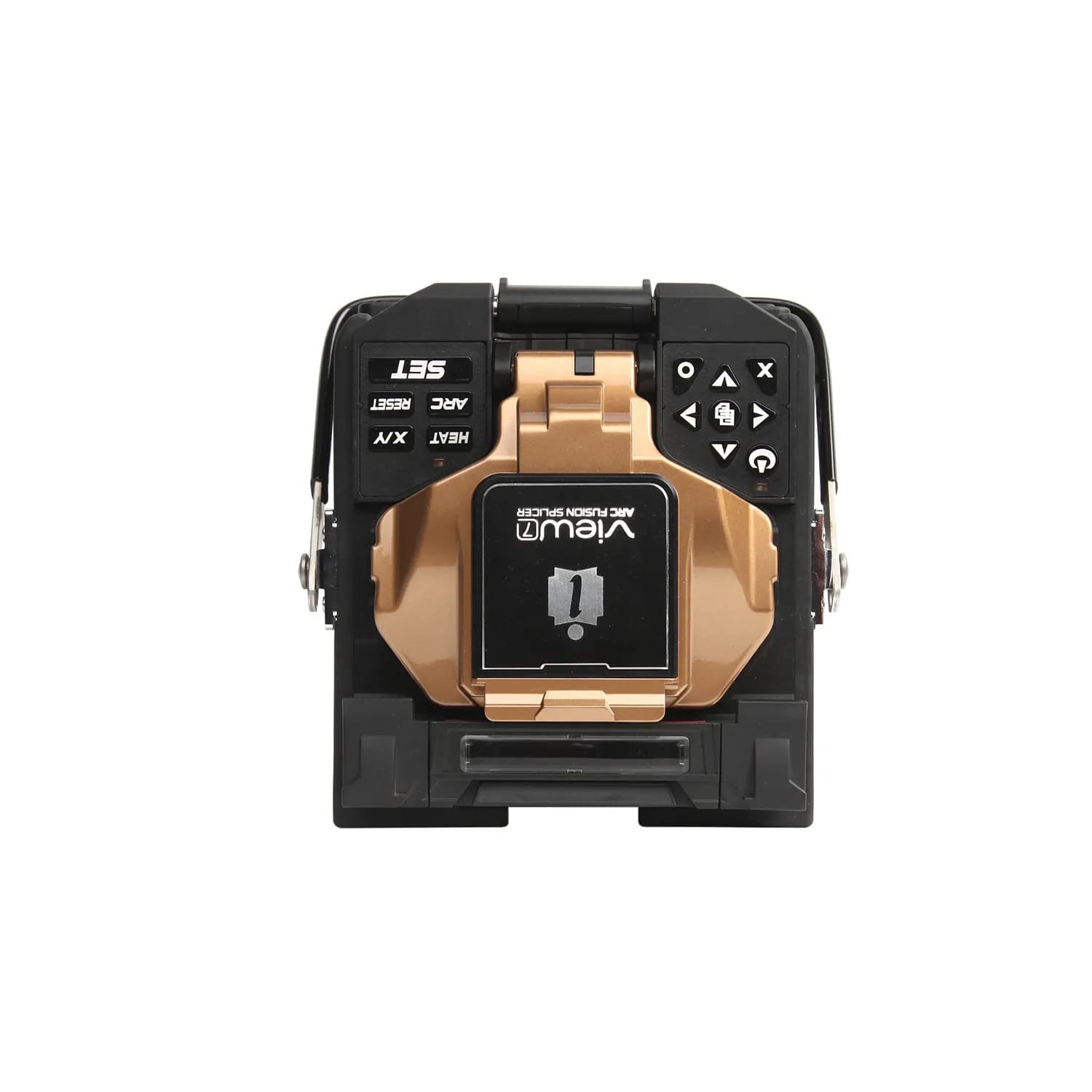

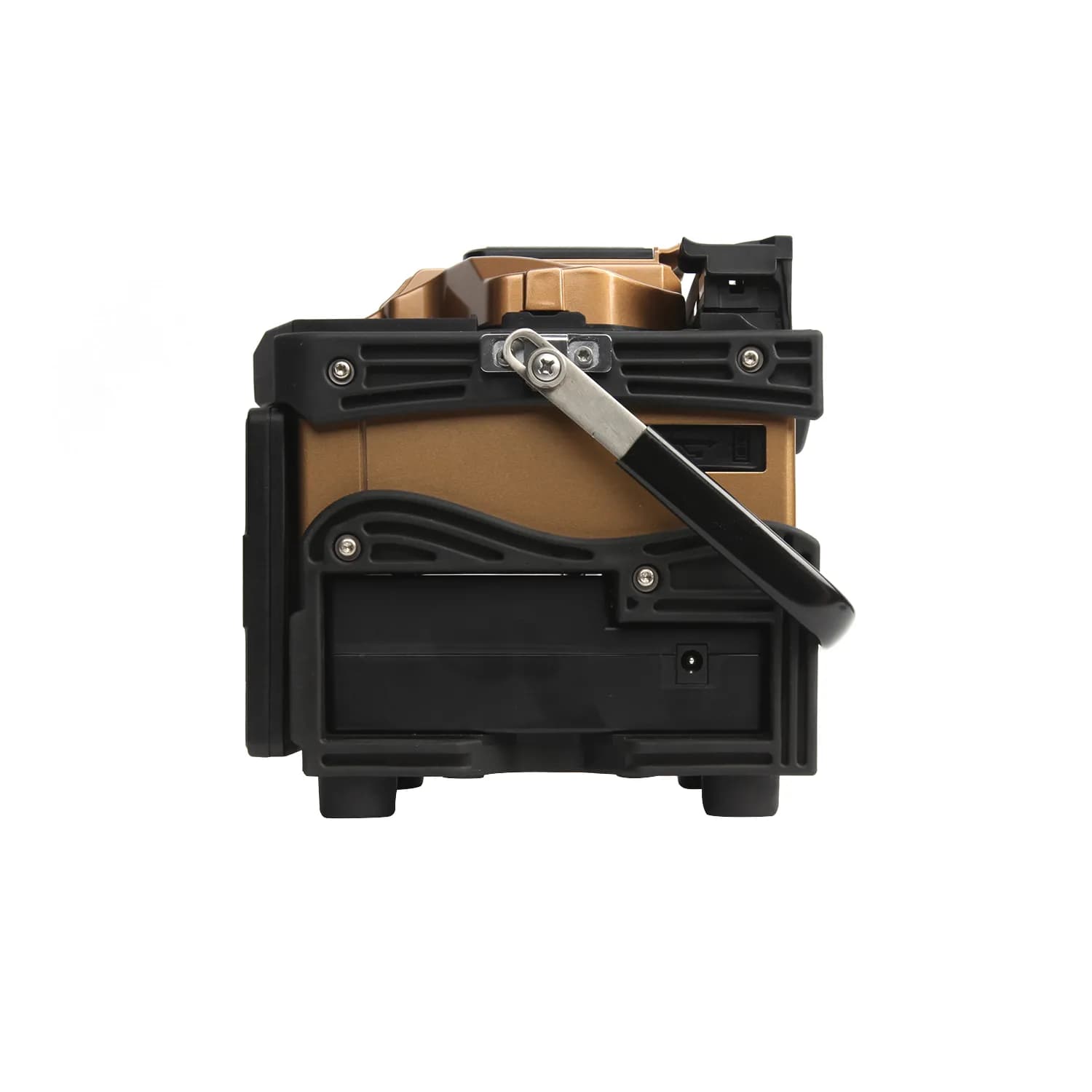

Core Allignment High-End Arc Fusion Splicer

Name: Core Allignment High-End Arc Fusion Splicer
Brand: Inno Instrument
SKU: View7

Stock Code: View7

Aligns cores by digital analysis and runs long splice rounds on a single charge.

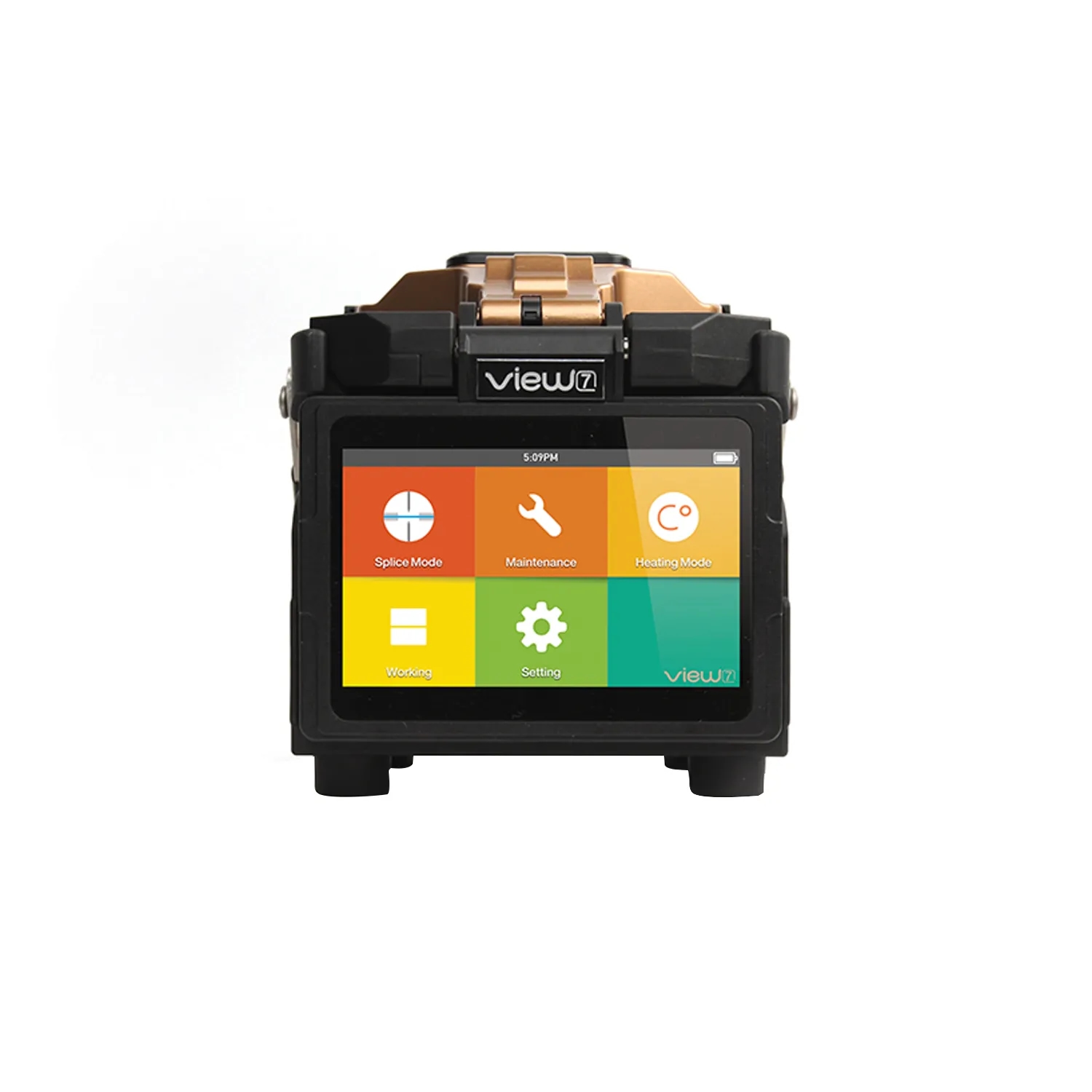

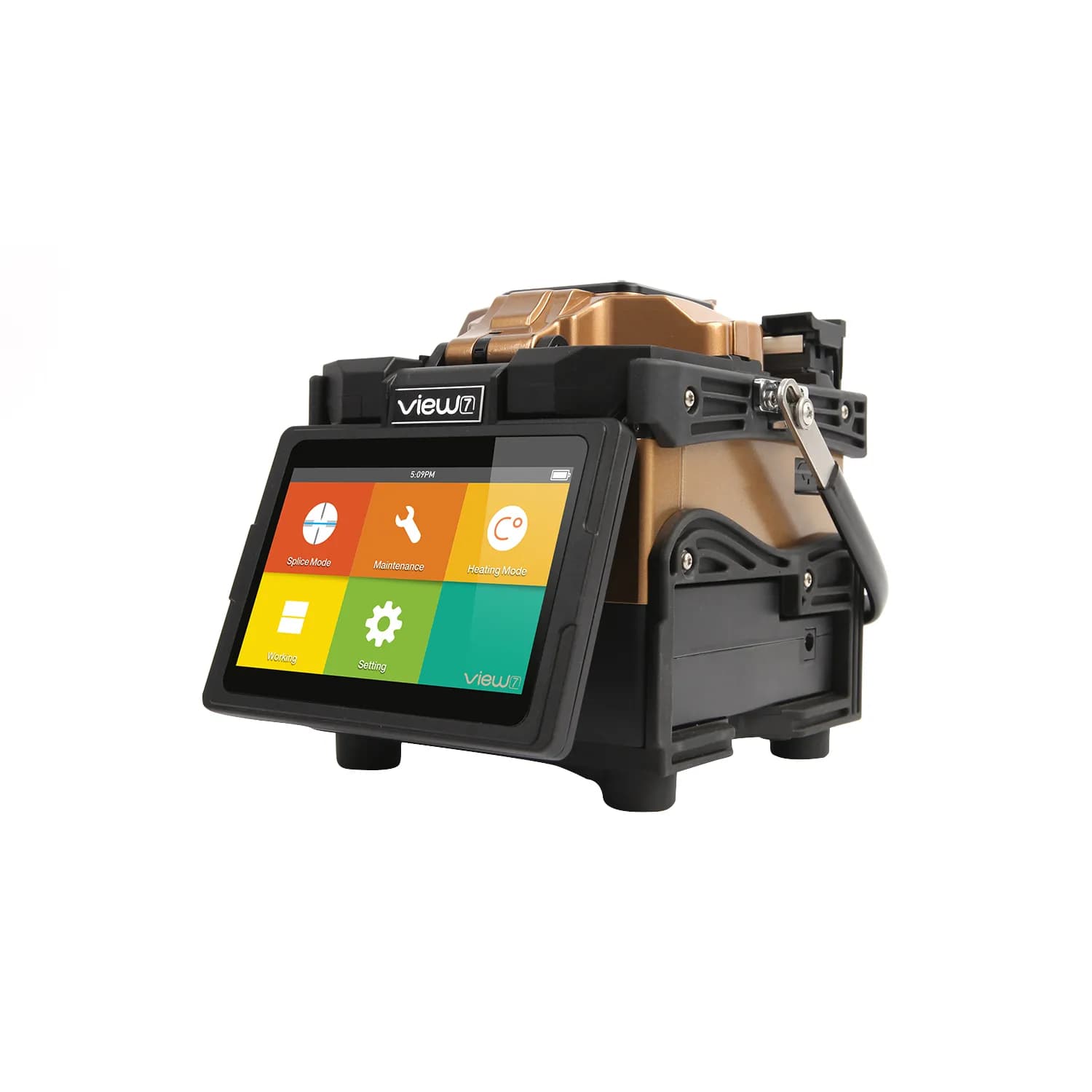

A core alignment arc fusion splicer for field and lab work. Its color touch screen magnifies the fiber image, and its high capacity battery carries splice rounds that last all day.

Core alignmentSplicing method

7 secSplice time

13 secHeating time

5 inchesColor touch screen

9800 mAhBattery capacity

3White LEDs

Key features

7sec

Splicing in quick mode

In auto mode the splice time stays around 8 sec.

0.02dB

Typical splice loss on single mode

On multimode fiber the typical loss drops to 0.01 dB.

355cycles

Splices per charge

The 9800 mAh battery carries a splice round that runs all day.

520X

Magnification of the fiber image

A double tap zooms in, and the view switches between X, Y and XY.

60dB

Return loss

Holds back the light reflected from the splice point.

5500arcs

Electrode life

An electrode grinder stretches the replacement interval further.

DAY-TO-DAY IN THE FIELD

Working in the darkWhite LED lighting and the backlit keypad keep night work moving.

SOC and cable prepThe detachable connector holder and cable cutter move between flat cable and SOC quickly.

Built for harsh weatherThe anti-reflective body and ceramic fiber clamp hold their setting in rough field conditions.

Model
Dimensions	160H x 133W x 155D mm (without rubber bumper) / 167H x 143W x 163D mm (with rubber bumper)
Weight	2.80KG (with battery) / 2.17KG (without battery)
Fiber Count	Single
Applicable Fiber	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor Cable (with VFH-40)
Cleaved Length	Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter	80~150 µm
Splicing Mode	Max. 128 modes
Heating Mode	Max. 32 modes
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard)
Return Loss	>>60dB
Illumination	3 White LEDs
Splicing Time	Quick Mode: 7 seconds / Auto Mode: 8 seconds
Estimated Splice Loss	Available
Heating Length	20~60 mm
Heating Time	Typical heating time: 13 sec
Results Storage	The last 10,000 results
Tensile Test	1.96~2.25N
Operating Conditions	Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max. Wind 15m/s
Storage Conditions	0~95% relative humidity, -40~80°C
Display	90° bi-directional view, 5.0" Color High Resolution Screen
Fiber View and Magnification	X, Y, XY, X/Y : 520X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Splicing Count and Heating with Battery	9800mAh Battery Capacity, Typical 355 times (Splice+Heat)
Operation Methods	Button / Touch Screen
Auto Calibration	Automatic arc calibration according to air pressure and temperature
Electrode Life	5500 arcs, can be extended using an electrode grinder
Terminal	USB2.0 / MINI USB
