Moves the OTDR dead zone off the link under test
This OTDR launch cable adds 1000 meters of singlemode fiber between the instrument and the link under test. The insertion loss and reflectance of the first connector then fall inside the measurement window, and variations in loss and distance readings drop.
1000 mLength
9/125Fiber Size
SC/APC – SC/APCConnector Type
0.5 dB @1310 nmTypical Loss
-40°C ~ +55°COperating Temperature
224 x 130 x 70 mmDimensions
Key features
Pushes the dead zone outThe launch cable keeps the near-end blind spot of the OTDR on the instrument side and brings the first connector into the measurement window.
Reveals near-end lossIt connects the OTDR to the link under test and discloses the insertion loss and reflectance of the first connection.
1000 meters of singlemode fiberThe 9/125 singlemode fiber shows 0.5 dB typical loss over 1000 meters at the 1310 nm wavelength.

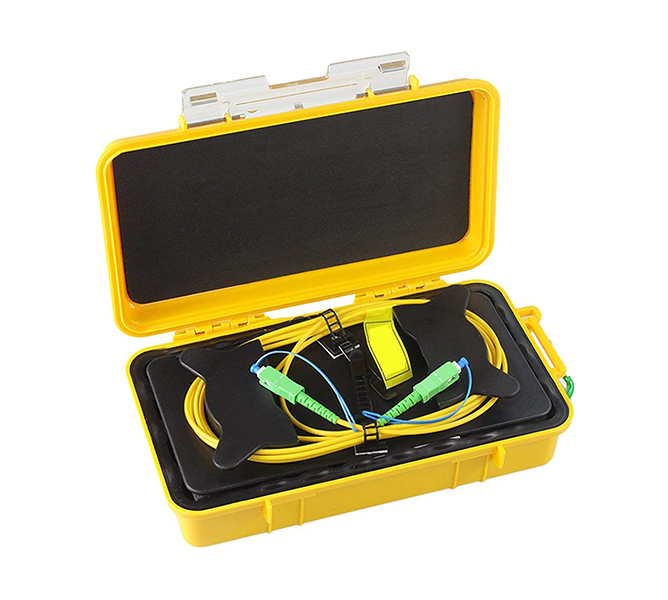

Field-ready enclosureThe SR polypropylene body carries the fiber spool in a 224 x 130 x 70 mm case.
Wide temperature rangeIt operates between -40°C and +55°C.
